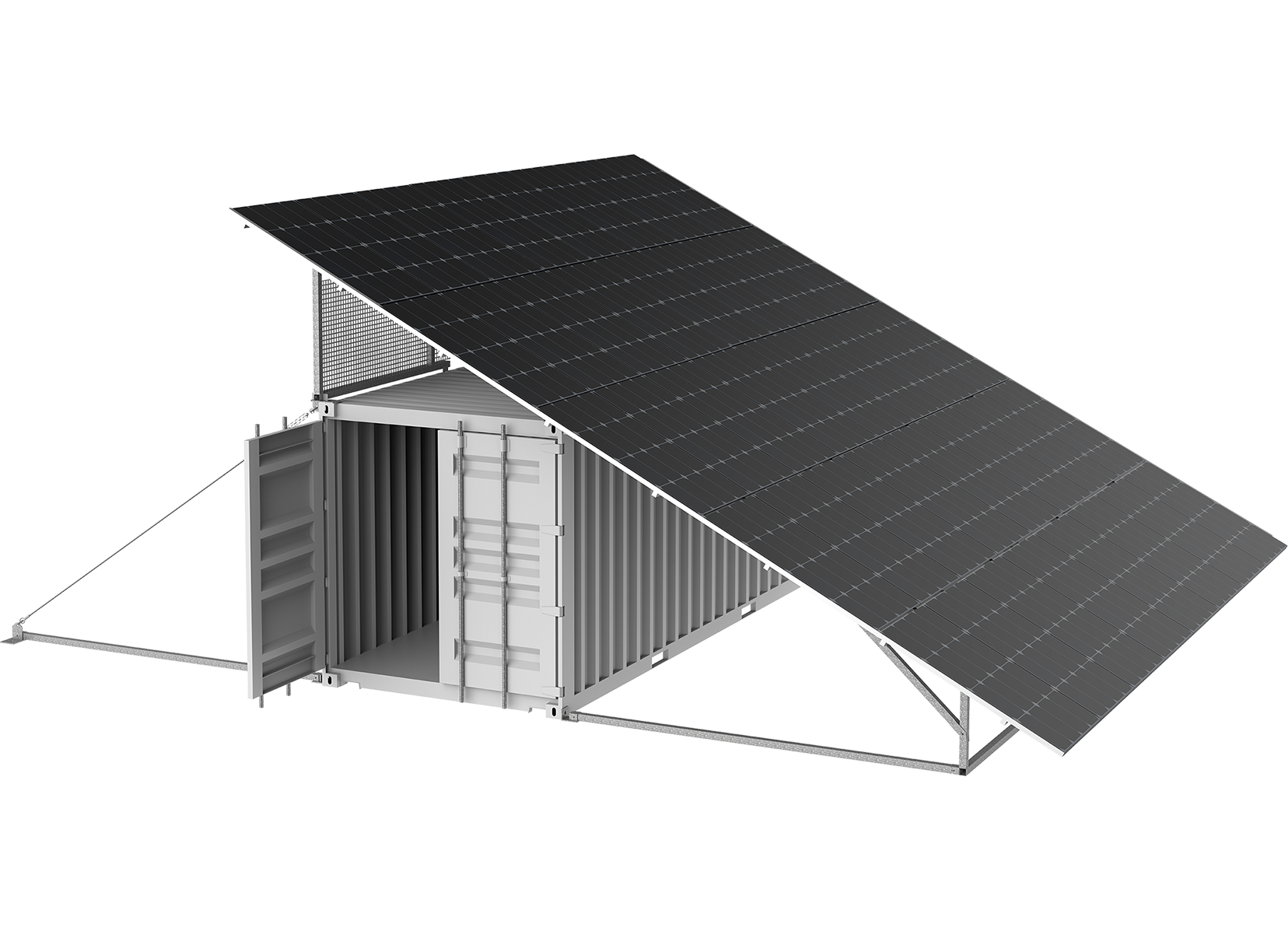

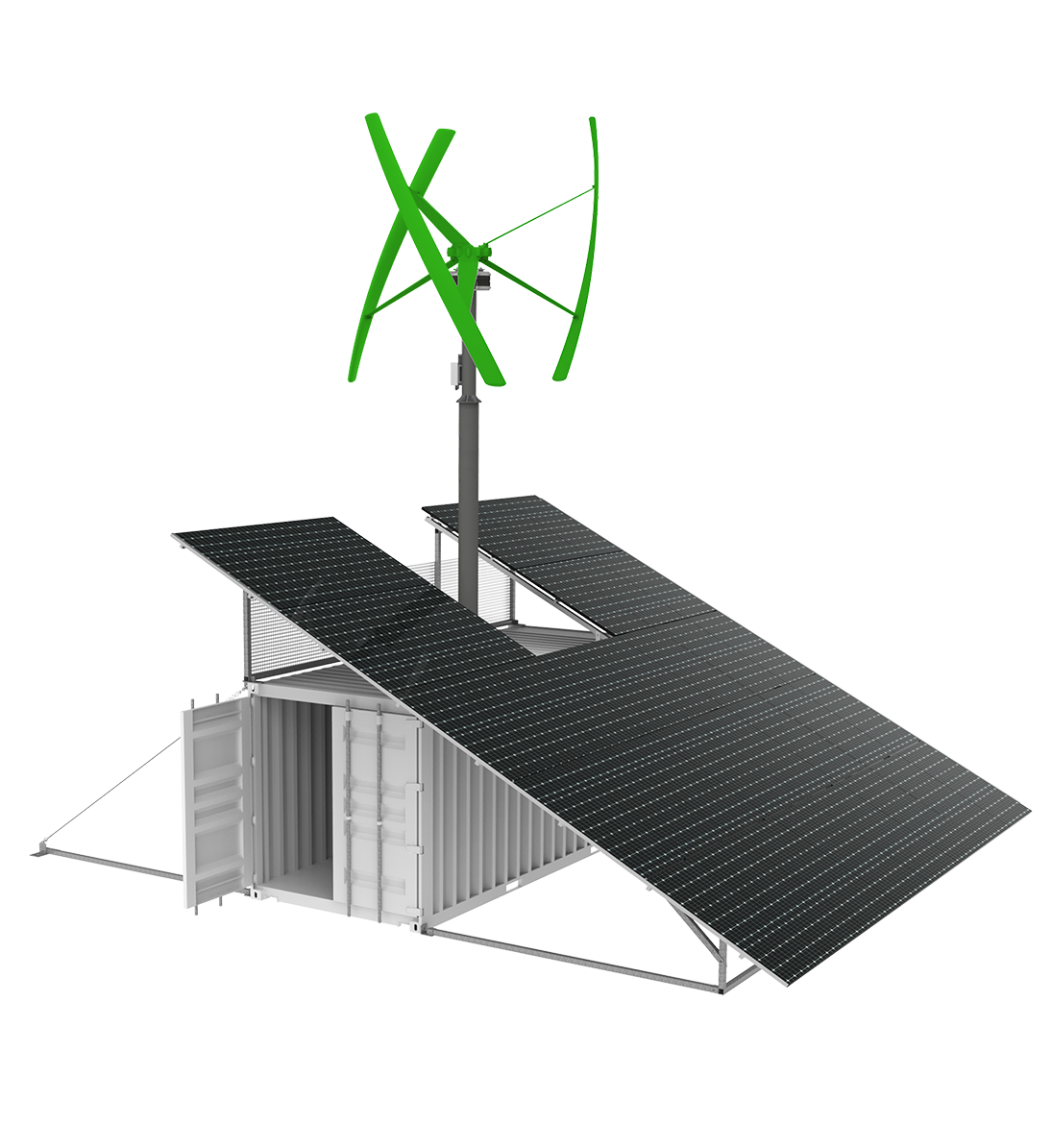

It is a compact and modular unit, using solar and wind energy to delivery uninterrupted clean energy. The containerized system has a peak power output of 10 kWp and an average power output of 40 kWh per day in standard version. The output can easily be increased up to 30 kWp by adding additional ground-mounted solar panels.
One of the biggest advantages of our greenMOBILEgenerator is the fact that it can be easily installed at almost any desired location. As all the required components are stored in the container, set-up time can be reduced to a minimum and relocation becomes very easy. Once the system is installed, the greenMOBILEgenerator supplies uninterrupted clean energy with low maintenance requirements.

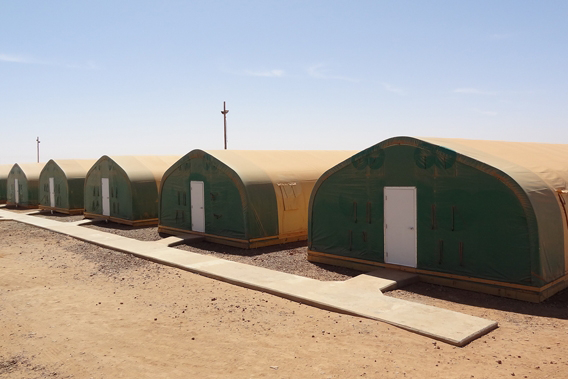

Clean power for areas without grid connection.
Reliable power for mobile applications.
Instant help for affected areas.
Constant power supply for remote sites.
Ideal solution for off-grid power supply.

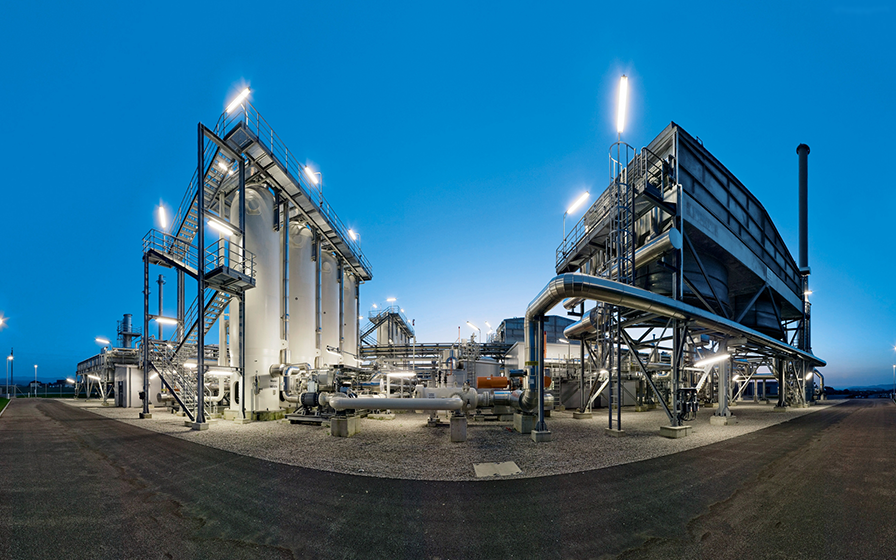

Reliable power supply for critical applications.

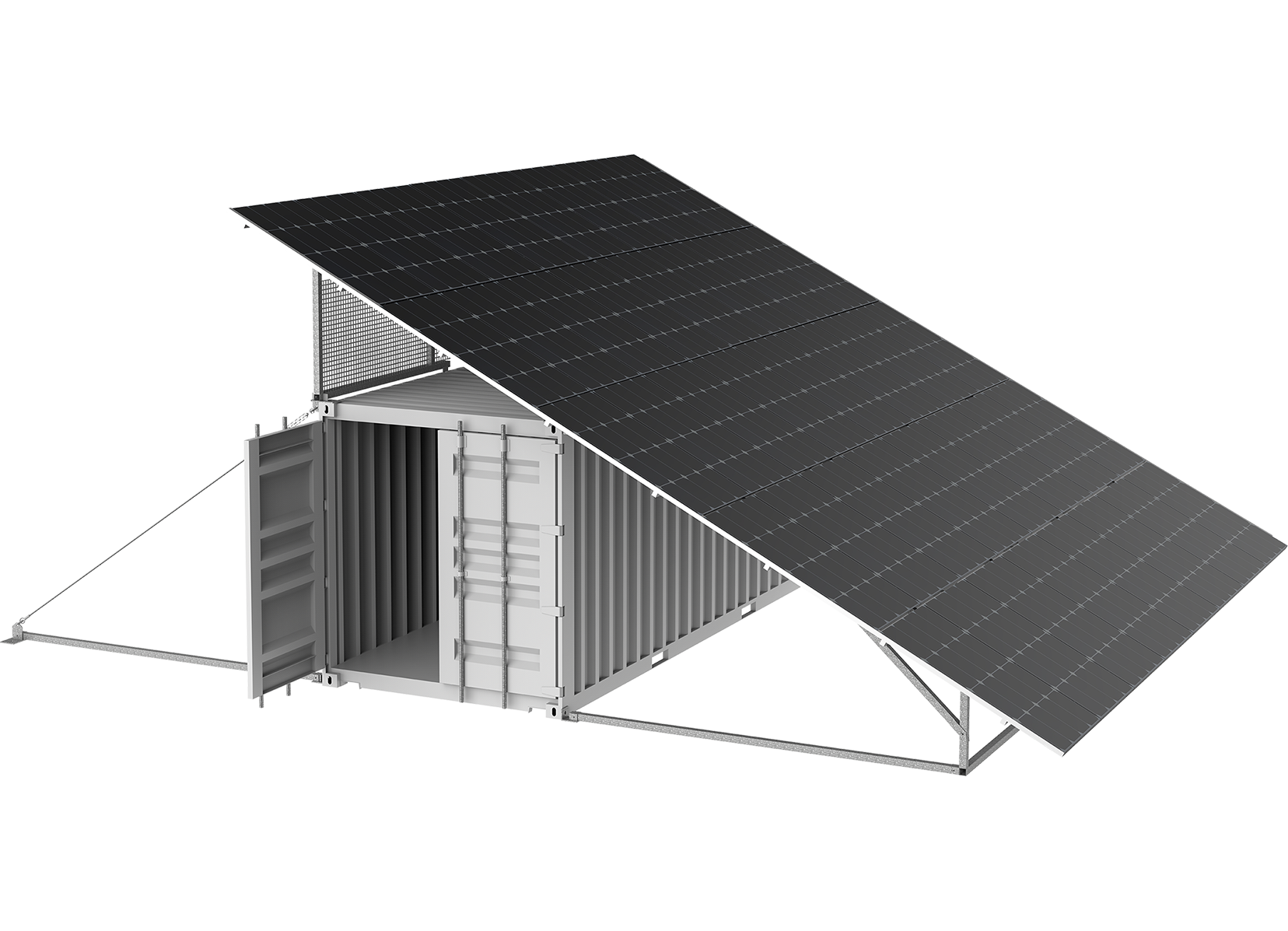

The standard version of the greenMOBILEgenerator is consisting of a 20 ft. ISO container, 10 kWp solar panels, inverters, distribution board incl. monitoring and remote control system, as well as outgoing feeders.

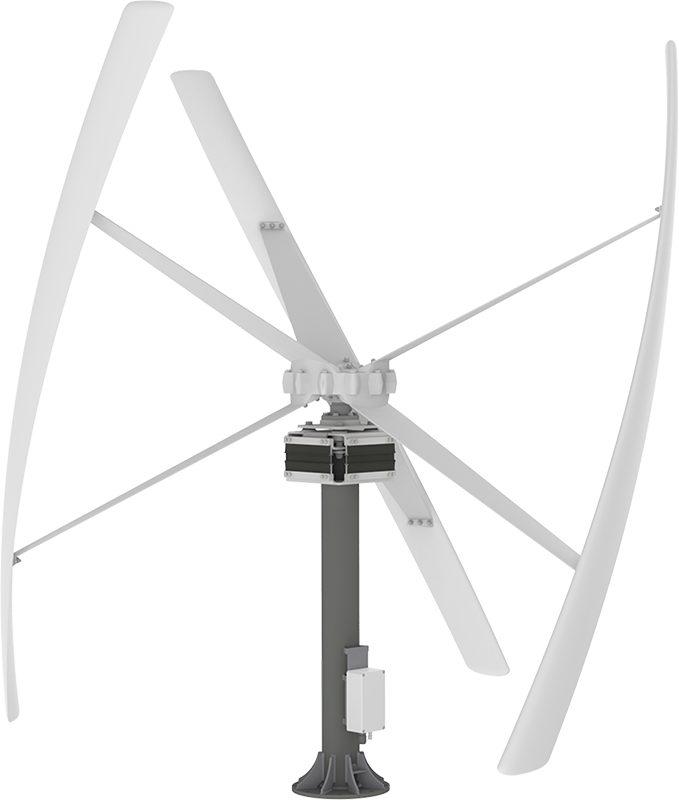

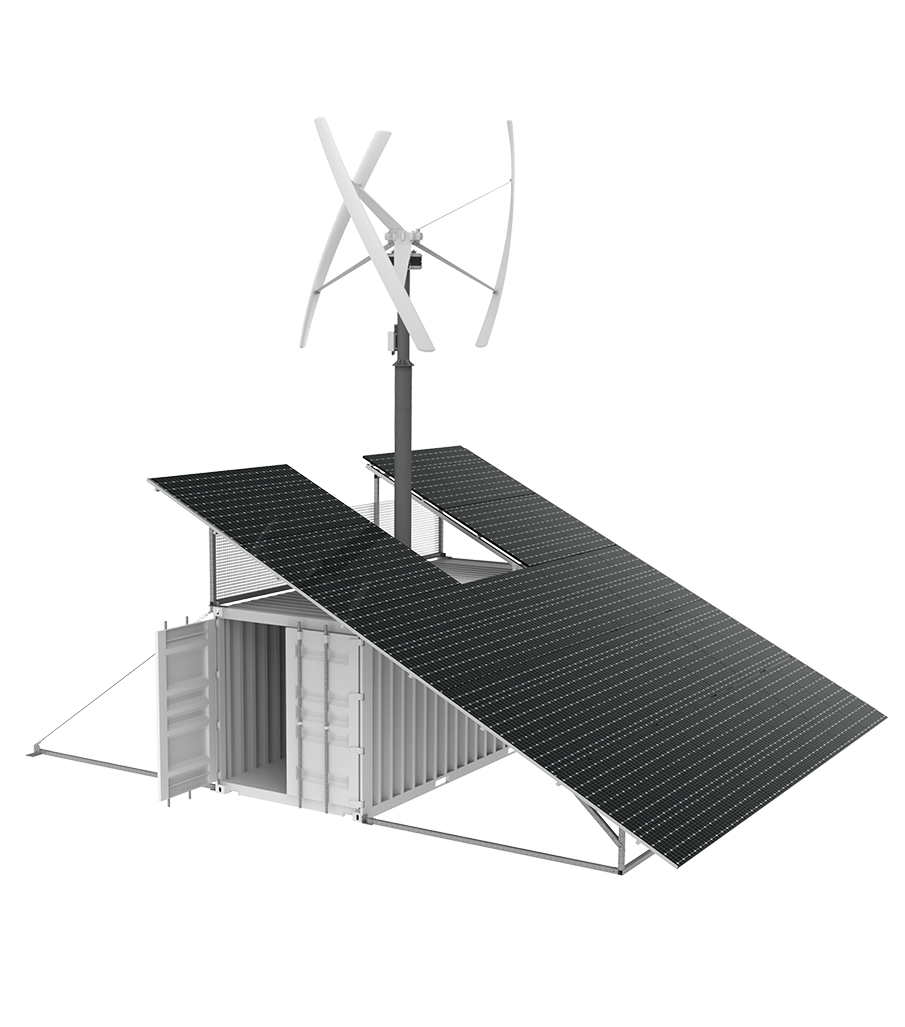

A vertical wind power station can be integrated for additional power supply, especially during nighttime. It has a capacity of 2.0 kWp.

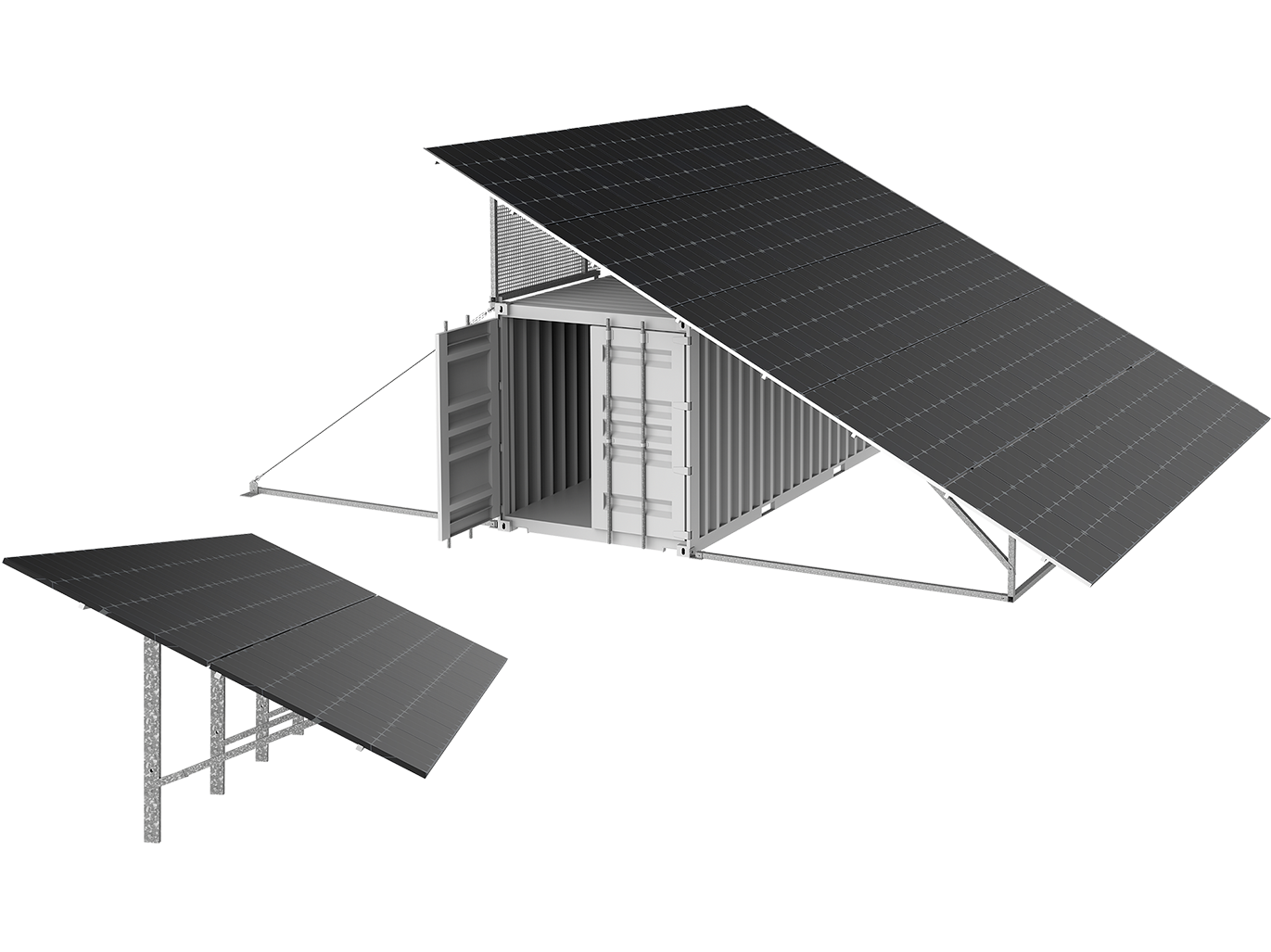

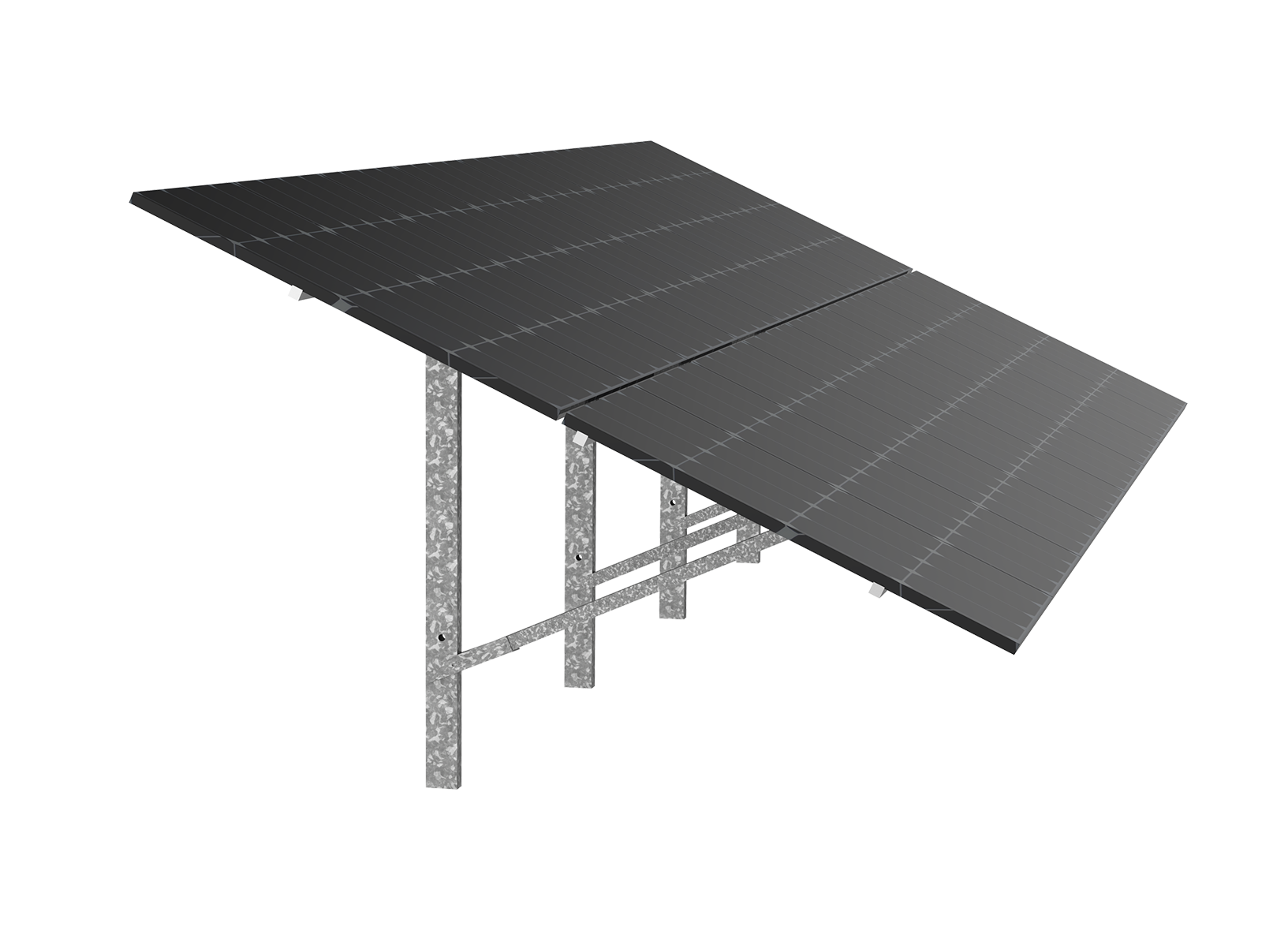

Ground-mounted solar panels can increase the maximum power output of the system up to 30 kWp.

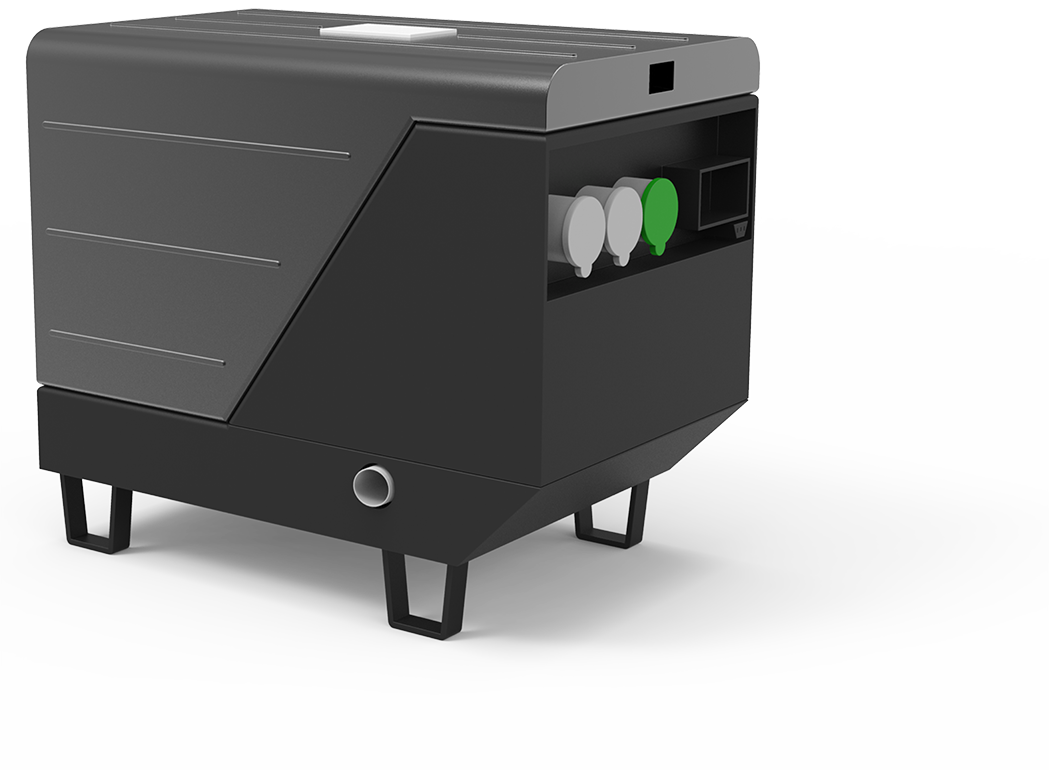

A 5.0 kW diesel generator can be integrated as back-up for crucial applications or for energy generation during nighttime.
The container can be equipped with a modular energy storage system. The capacity can be increased in steps of 1.2 kWh.
The interior of the container can be seen as the heart of the greenMOBILEgenerator. All required components, such as inverters, monitoring system, or the main distribution board are factory installed and ready to use. Only cables coming from the photovoltaic or the wind power system have to be connected. All system parts and components are perfectly matched to one another and work accurately and reliably, even in demanding environments. For this reason, we offer a 10 years warranty for the PV system and 5 years warranty for inverters and the main distribution board. The PV mounting system and the wind turbine can be mounted quickly and easily to the appropriate points on the container. The substructure of the PV panels also functions as a supporting structure for the entire container. Therefore additional soil compaction is not necessary. A level surface is sufficient enough.

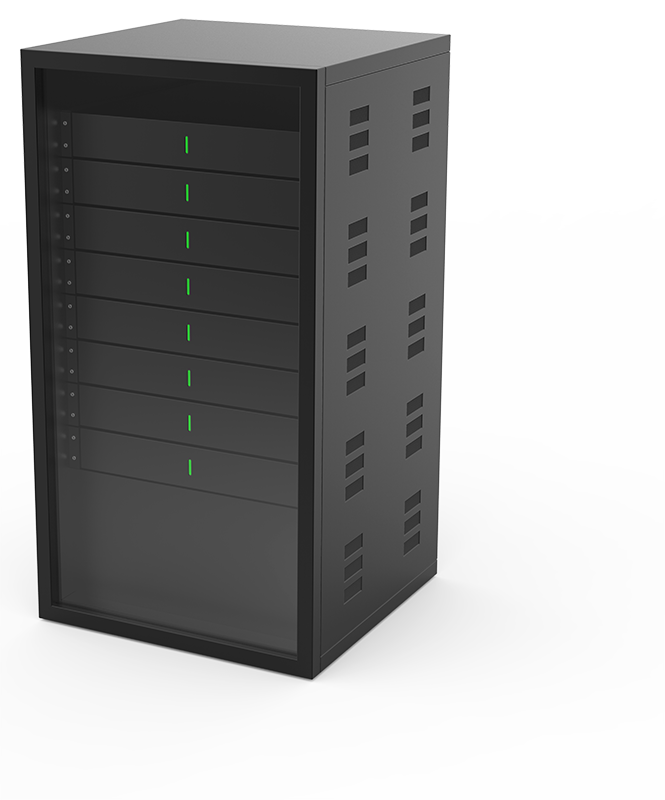

Each of the three versions can be equipped with a modular battery storage system. It is a state of the art LiFePO4 system with a lifetime of more than 8.000 cycles. The capacity of the system can be increased in steps of 1.2 kWh individually and assures a basic supply during nighttime.
Additionally, each of the three versions can be equipped with a highly efficient 5.0 kW diesel generator set. It is completely integrated and starts automatically when required. In this way it serves as back-up for crucial applications or for energy generation during nighttime.
